Balboa HA440NG Spa Pump - 1 ½HP - 2 Speed

79mm Centre Suction x 79mm Side Discharge

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year (There is usually a one off fee to pay unless we are running a promotion) This can be arranged at the point of purchase or within a limited time afterwards.
Promotions - From time to time we run a promotiont to include a FREE 1year Extended Warranty on select products. If an item is eligible for a FREE extended warranty then this will be displayed on the product listing & will be noted in your basket.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 483 OR email us at info@justspaparts.co.uk

LID: 19399
Extended Warranty Included Extended
Warranty
Included
Balboa HA440NG
Two Speed
1 ½HP
2" x 2" (79mm x 79mm)
£477.86 Inc VAT
( £597.32)
PMP-3544
1023024
8 In StockSame day dispatch if ordered by 14:00
Special Offer - Free Extended 1 Year Warranty included - worth £95.57
Fast UK Delivery
Extended Warranty Available
Extended Warranty Included
Free warranty is included with this purchase
Balboa HA440NG Spa Pump - 1 ½HP - 2 Speed
£477.86
RRP £597.32

Used by many Hot Tub manufacturers as it offers excellent performance. This 2 speed HA440NG is used for massage jets in both spas and pools.

The nature of its design means it does not sit flat. The Wet End is larger than the motor. So, it will need a block or stand to keep it horizontal.

This pump replaces the ITT Magnaflow 440 which has been discontinued. Can also be used as a replacement for HydroAir Genesis pump, some piping changes would be needed due to different threads.

You can find unions for this pump here

Model Information
Dimensions L x W x H 394x168x197mm
HEAD - H max 11.8 / 3.8m
FLOW - Q max 34 / 15m³h
Type / Speed 2 Speed
Model HA440NG
Horsepower 1.5 Hp
MPN 1023024
Motor Information
Voltage / Frequency 230V / 50Hz, 230V / 50Hz
Amp Draw 5.7 / 1.5 A
Power - P1 1.3 / 0.35 kW
RPM 2900 / 1450

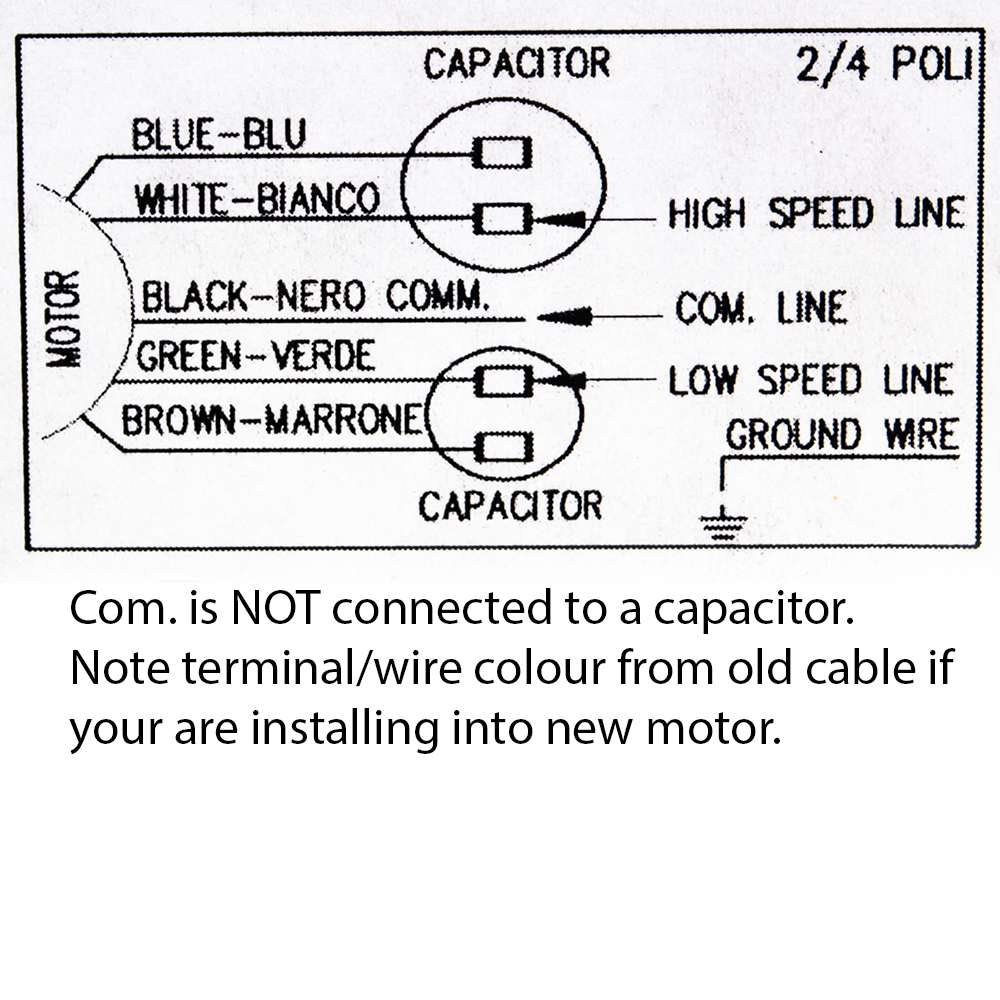

Capacitor Size(s) 25 / 16 µF
Frame Size 48F
Cord / Plug Type 4 Core AMP
Wet End Information
Union Connection Ref 2.0 " (Inch)
Configuration Center Suction, Side Discharge
Part No. 1215021
Thread Type Male - Buttress
Shaft Seal Type PS-201
Diagram
Spare Part Diagram
More Info

Pump Specification

Dimensions

  • 394 x 168 x 197 (mm)

Summary

  • Frame: 48
  • Discharge: Side
  • Ports: 2" Suction / 2" Discharge
  • Seals: Carbon ceramic with Viton® elastomers
  • AMPS: 5.7A / 1.5A
  • Speed: 2
  • HP: 1.5 (1.3 / 0.35kW)
Spares
COMPARE Balboa 48F/ 56F Wet End - 1HP - 2" x 2"
Balboa 48F/ 56F Wet End - 1HP - 2" x 2"
For Use With HA440NG / Ultimax
Special Order ItemLead time to be confirmed
QF: WET-4579
£98.52
COMPARE Waterway Gasket - Flat 74mm x 6.5mm
Waterway Gasket - Flat 74mm x 6.5mm
2" Unions
20 In StockSame day dispatch if ordered by 14:00
QF: 3276
£1.64
RRP: £1.82
COMPARE HS PRO Shaft Seal PS-201
HS PRO Shaft Seal PS-201
3/4" / 19mm Ø Shafts
45 In StockSame day dispatch if ordered by 14:00
QF: PMS-5494
£8.99
RRP: £11.01
COMPARE Hydrospares Pump Motor Bolt - 4 Pack
Hydrospares Pump Motor Bolt - 4 Pack
For 48 Frame Wet Ends
159 In StockSame day dispatch if ordered by 14:00
QF: BLT-3383-4PK
£2.00
Capacitors
COMPARE HS PRO - Motor Run Capacitor - 25µf
HS PRO - Motor Run Capacitor - 25µf
Flying Lead
2 In StockSame day dispatch if ordered by 14:00
QF: CAP-8468
£18.23
COMPARE HS PRO - Motor Run Capacitor - 25µf
HS PRO - Motor Run Capacitor - 25µf
Spade Terminal
5 In StockSame day dispatch if ordered by 14:00
QF: CAP-8476
£17.00
COMPARE HS PRO - Motor Run Capacitor - 16µf
HS PRO - Motor Run Capacitor - 16µf
Flying Lead
31 In StockSame day dispatch if ordered by 14:00
QF: CAP-8466
£14.21
COMPARE HS PRO - Motor Run Capacitor - 16µf
HS PRO - Motor Run Capacitor - 16µf
Spade Terminal
15 In StockSame day dispatch if ordered by 14:00
QF: CAP-8474
£12.54
