Gecko Topside Control Panel - in.k600

Up To 5 Pumps

LID: 20421

Works with in.xe, in.xm & Y Series Systems

Up to 5 Pumps

LCD display

Overlay MUST be ordered separately

SKU: 6277

MPN: 0607-008014

Discontinued

View Alternatives

Compare Product Ask us a Question

Fast UK Delivery

Next working day from £8.50 Standard from £4.50 or FREE if you spend £60

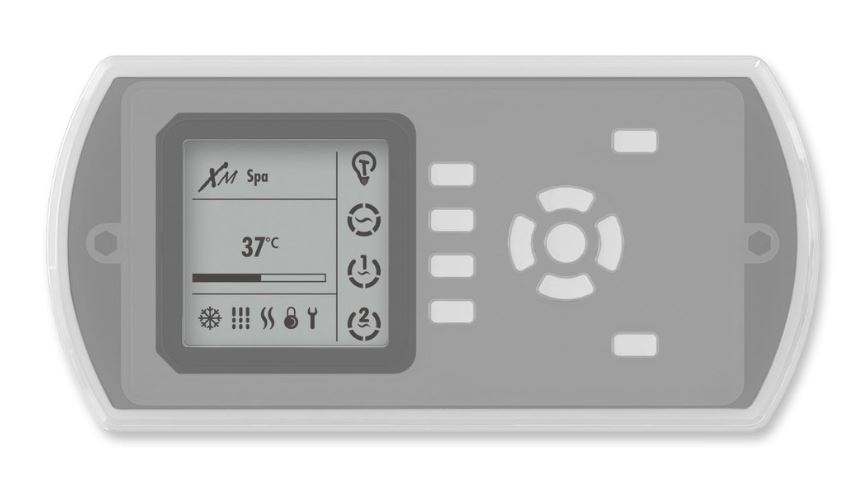

Gecko Topside Control Panel - in.k600

Advanced Full-Function Keypad

Gecko's series of in.k600 keypads offers spa manufacturers a wide range of possible configurations, making our in.xm platform a perfect solution for mid-range to high-end and AV equipped spas.

The in.k600 keypad offers a low profile configuration and enhanced durability. In.k600 can be customized with exclusive enclosure shapes.

Menu-Driven Interface

Creating a unique experience directly from your spa side, the in.k600 allows control of all functions and programming of the spa system and peripheral accessories.

Streamlined Interface

Built with a great design, the in.k600 features a large LCD display, a streamlined interface and raised keys for an easy control of all in.xm functions.

Topside Information

Topside Shape	Rectangle
Topside Dimensions	222 mm
Topside Series	IN.K
Naked Topside MPN	0607-008014
Topside Connection	in.Link
Compatible Spa Packs (Works With)	X SERIES
Topside Display Type	LCD

Compatible Spa Packs (Works With)

Overlay Information

Overlay MPN	9916-101381
Overlay Display Cut Out	Yes

Topside Plug Type

Overlay Compatibility

IN.K600

Downloads & Articles

IN.K600 Menu Driven Interface DOWNLOAD

More Info

Topside Specifications

Dimensions

222 x 108 (mm)

Summary

Model: IN.K600-5OP Keypad with menu-driven interface (Overlay MUST be ordered separately)
11 Buttons: Functions 1 to 4/Left/Right/OK/+/-/Mode/Next
Cord length: 3 m
Compatible with: in.xm, in.xe & Y systems
Additional P/N: BDLK600GF, 0607-007014, PF0607009012

Important Information:
Our range of Topside Controls must be installed by a competent individual or tradesman, that is trained within the industry. Topside controls and other computerised equipment are exempt from our returns policy if they have been opened or installed. If the topside control is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the item is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.
*Please ensure this is the correct touch pad control as this item is non-refundable - If you are unsure, please contact our friendly customer service team for advise & support
