LX LP200 Spa Pump - 2HP - 1 Speed

79mm Centre Suction x 79mm Side Discharge

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year (There is usually a one off fee to pay unless we are running a promotion) This can be arranged at the point of purchase or within a limited time afterwards.
Promotions - From time to time we run a promotiont to include a FREE 1year Extended Warranty on select products. If an item is eligible for a FREE extended warranty then this will be displayed on the product listing & will be noted in your basket.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 483 OR email us at info@justspaparts.co.uk

LID: 19199
Extended Warranty Included Extended
Warranty
Included
LX LP200
Single Speed
2HP
2" x 2" (79mm x 79mm)
£174.23 Inc VAT
( £260.05)
PMP-5749
LP200
107 In StockSame day dispatch if ordered by 14:00
Special Offer - Free Extended 1 Year Warranty included - worth £34.85
Fast UK Delivery
Extended Warranty Available
Extended Warranty Included
Free warranty is included with this purchase

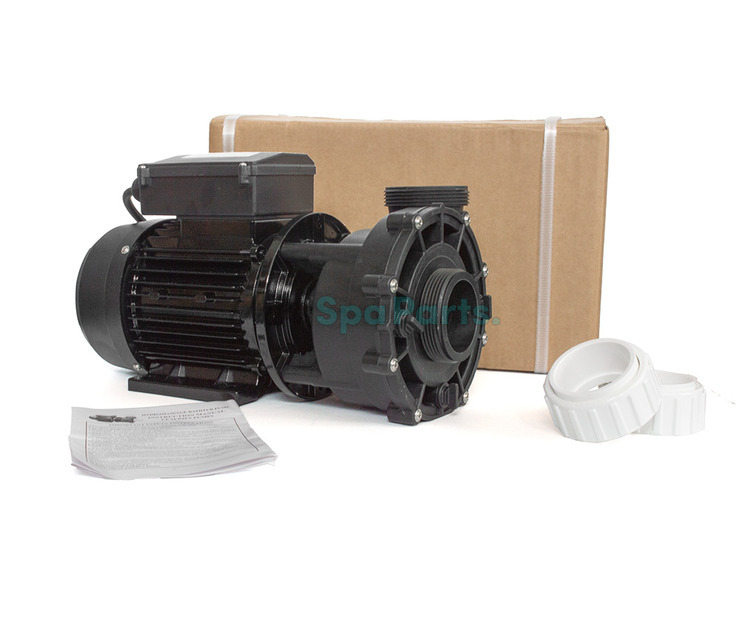

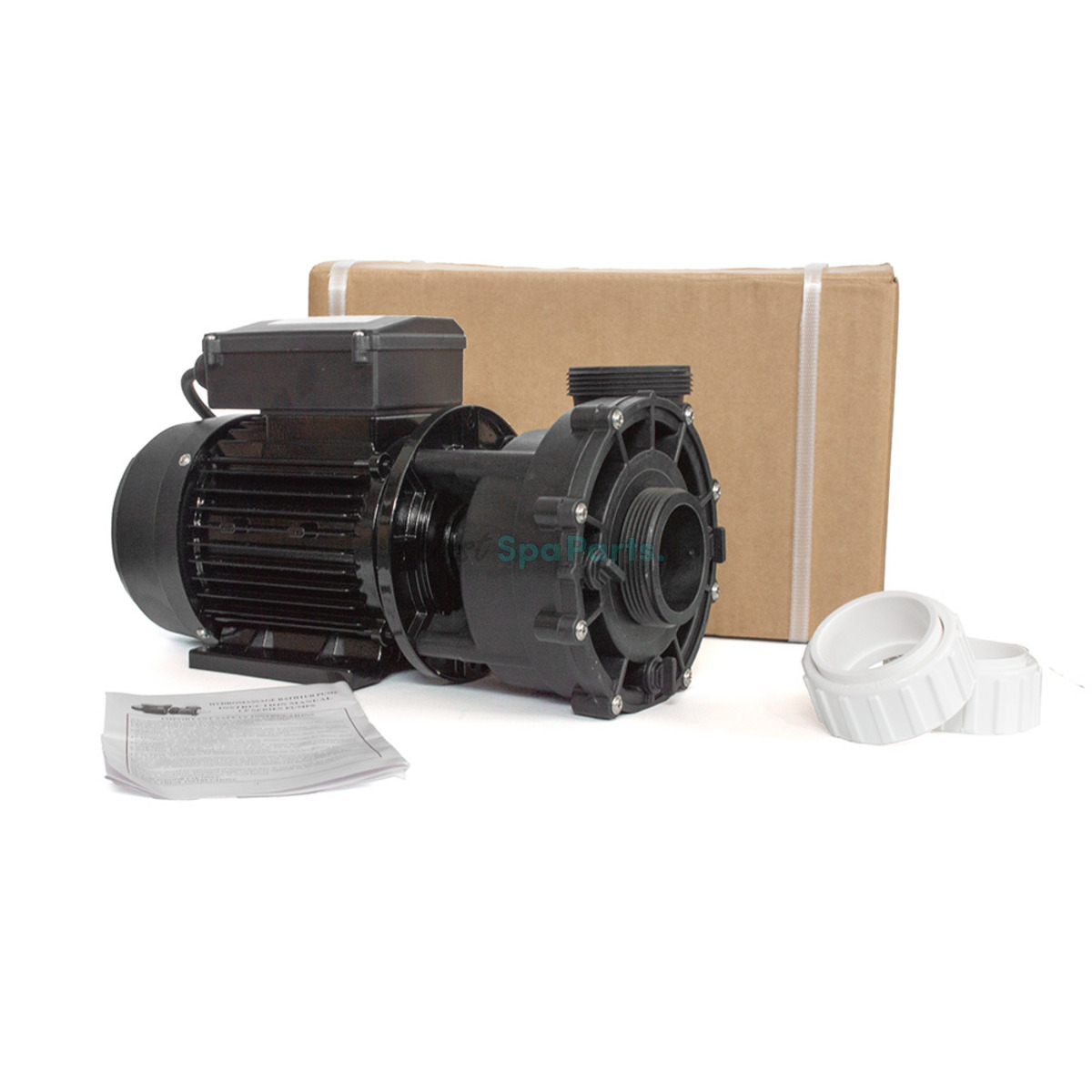

LX LP200 Spa Pump - 2HP - 1 Speed
£174.23
RRP £260.05

The LP series of pumps will serve as a booster pump to deliver a high volume of water through hot tub jets.

If you require a 2 speed pump from LX, please see our LX WP Series.

This is a direct replacement for a LX LP200 Single Speed Spa Pump with 2" connections manufactured AFTER / POST 2008 (See IMPORTANT NOTE below)

Replacement for the following Jacuzzi models

  • 6500-124
  • 6500-239
  • 6500-240
  • 6500-294

IMPORTANT NOTE: Older (Pre 2008) LP & WP pumps and wet ends are manufactured with a shorter section (approx. 15mm) and discharge port (approx. 30mm). You may find on some hot tubs with very rigid plumbing that the newer versions will not line up with the pipework. The wet end faceplate moulding is different and they are also "open" on the rear of the wet end casing as opposed to the pre 08 wet ends which are encased. SEE IMAGES FOR REFERENCE

If you are replacing a pre '08 version (the wet end is labelled B351-03) we find that the Waterway Executive equivalent tends to have a better fit.

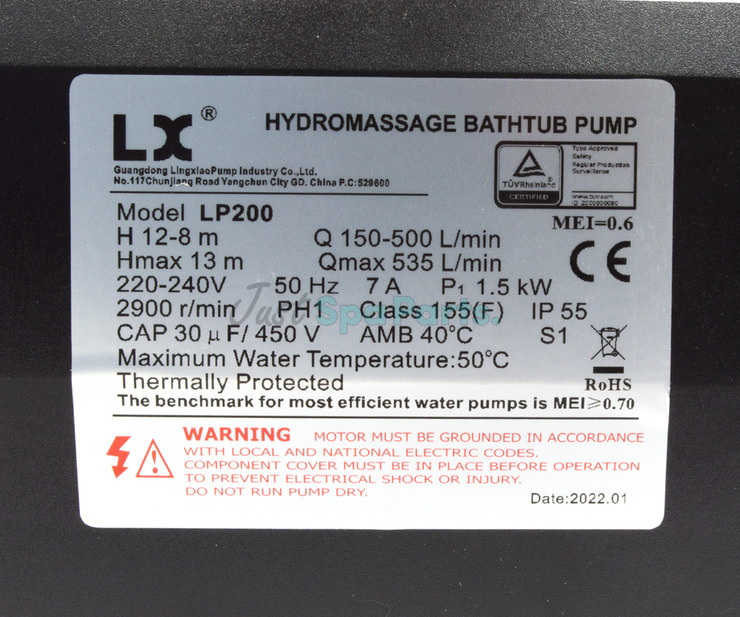

Model Information
Dimensions L x W x H 385x200x220mm

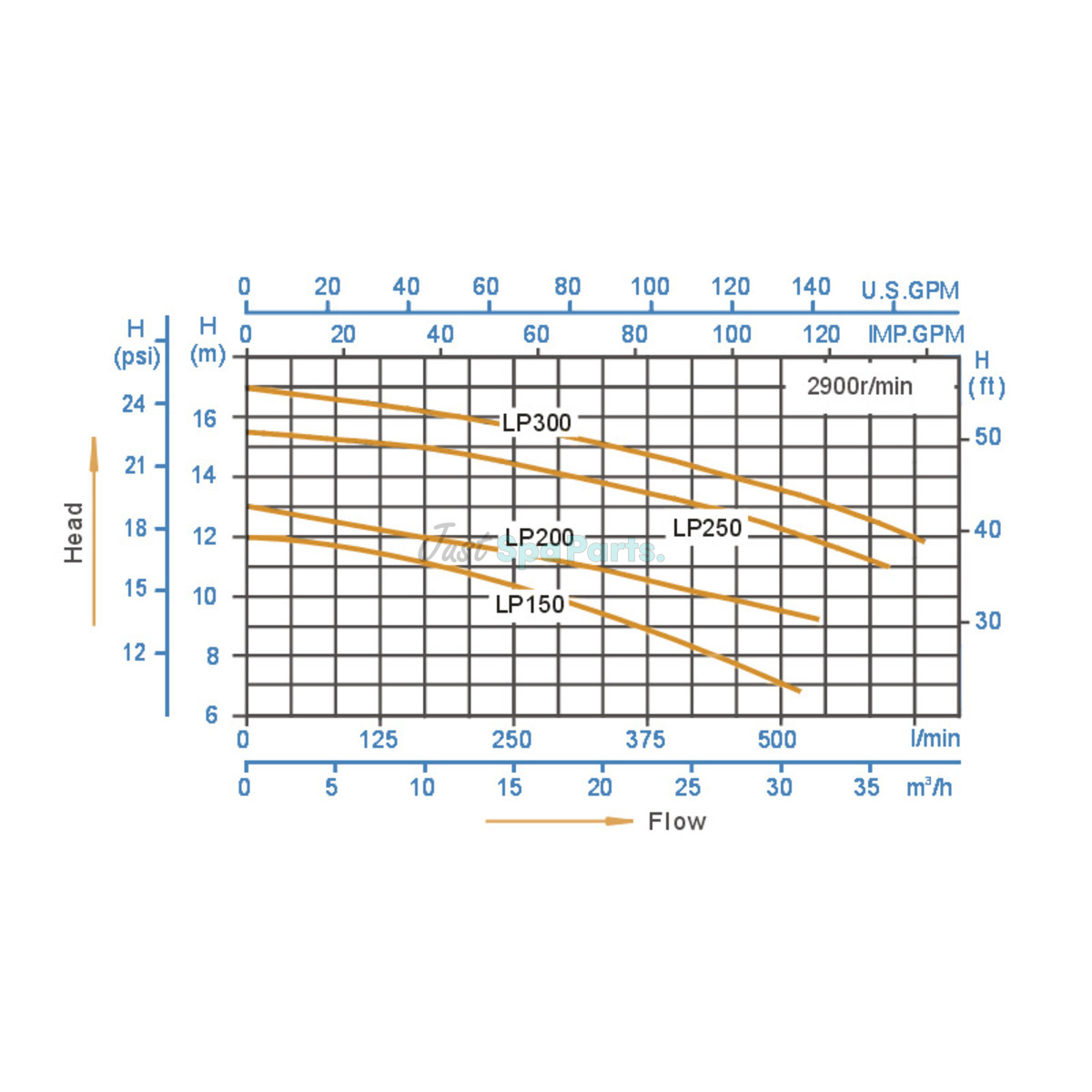

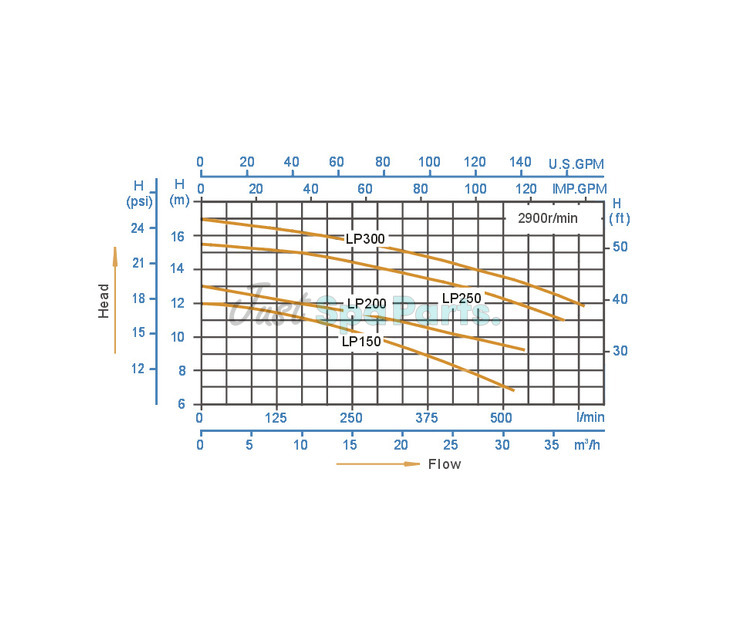

HEAD - H max 13m
FLOW - Q max 535lpm
Type / Speed 1 Speed
Model LP200
MPN LP200

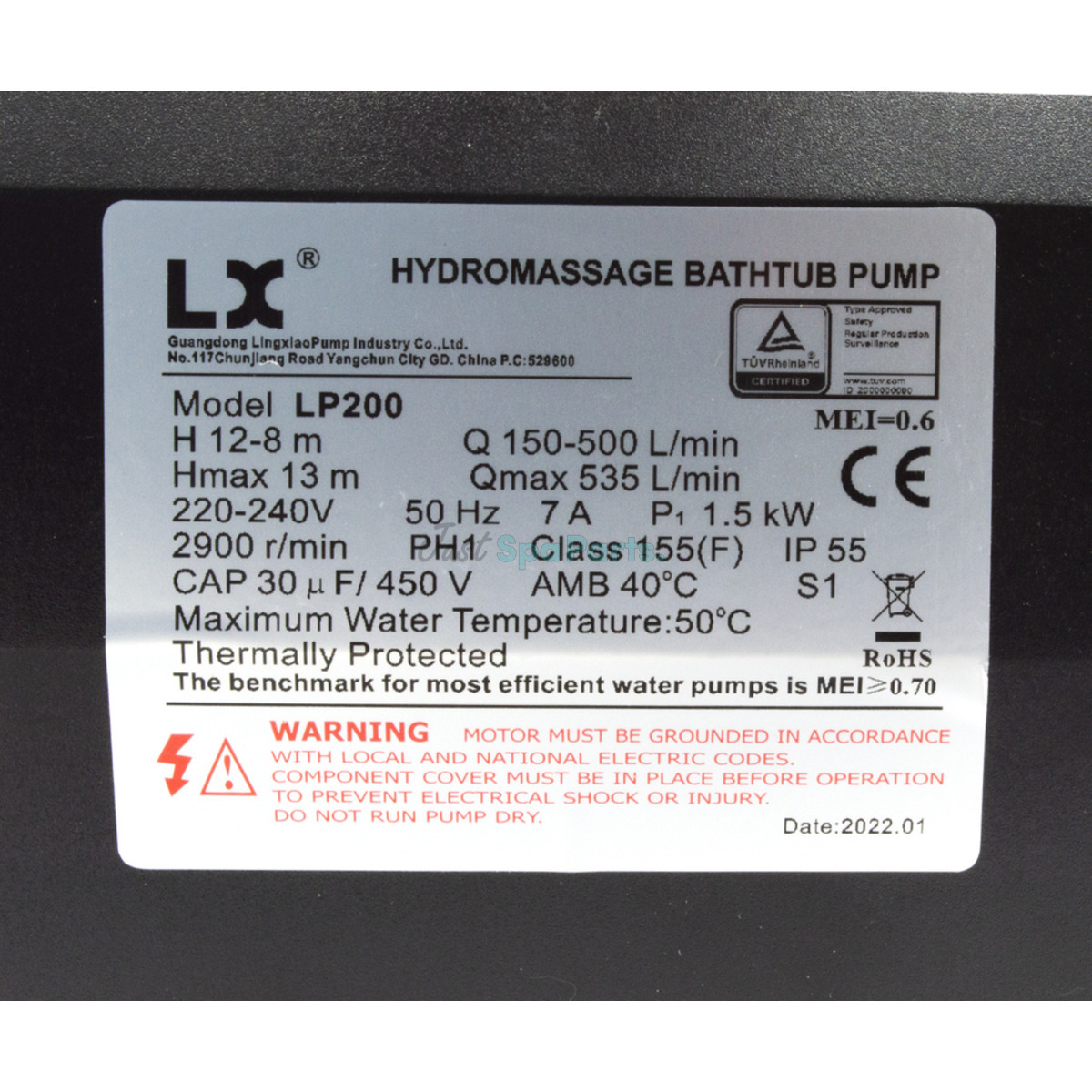

Motor Information
Amp Draw 7.0 A
Power - P1 1.5 kW
RPM 2900
Capacitor Size(s) 30 µF
Wet End Information
Union Connection Ref 2.0 " (Inch)
Impeller Part No. B351-21
Impeller Diameter 107mm
Impeller Vane Gap 11.5mm
Shaft Seal Type Type A
Spare Parts Available Yes - See Spare Parts List

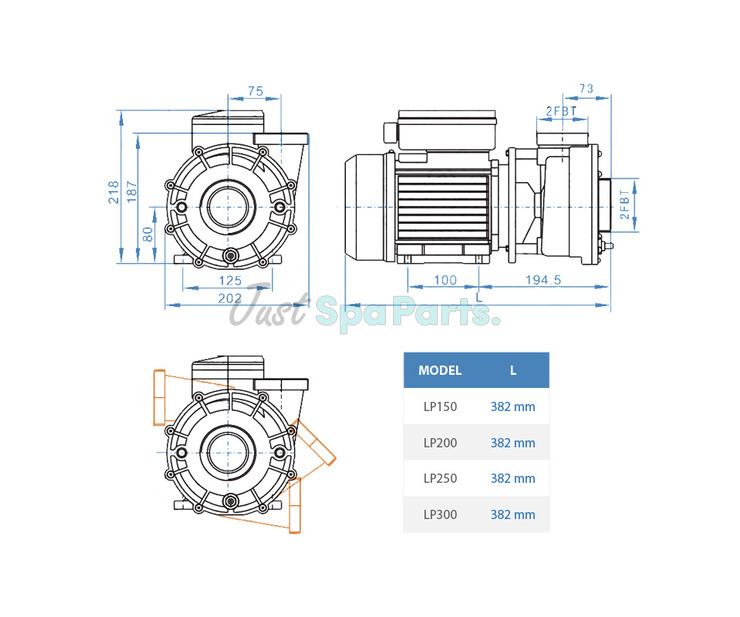

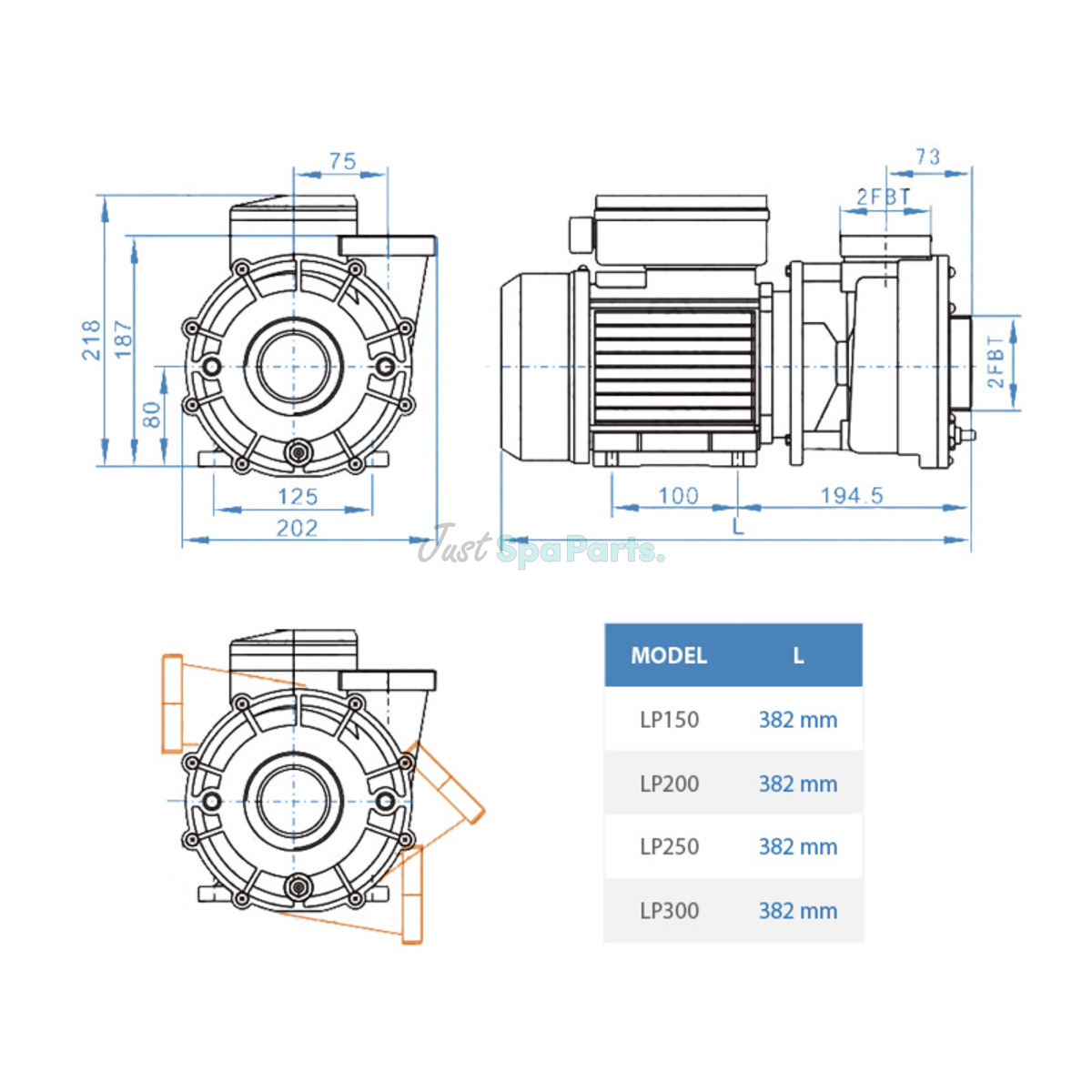

Dimensions
Spare Part Diagram
More Info

Pump Specifications

Dimensions

  • 420 x 225 x 290 (mm)

Summary

  • Power: 2HP / 1.5kW
  • AMP: 7A
  • Max. Head: 13 m
  • Max. Flow: 535 L/min
Spares
COMPARE LX Wet End Assembly - 2HP - 2" x 2"
LX Wet End Assembly - 2HP - 2" x 2"
For Use with LP200/ WP200 - Post 2008
6 In StockSame day dispatch if ordered by 14:00
QF: WET-5802
£41.99
RRP: £65.49
COMPARE LX Pump Shaft Seal - Type A
LX Pump Shaft Seal - Type A
For JA, LP & WP Series
95 In StockSame day dispatch if ordered by 14:00
QF: PMS-7397
£14.98
RRP: £22.43
COMPARE LX Motor Cooling Fan - 124mm
LX Motor Cooling Fan - 124mm
For LX Pump Motors - Black
62 In StockSame day dispatch if ordered by 14:00
QF: FAN-10476
£4.20
RRP: £4.99
COMPARE LX Motor Cooling Fan - 156mm
LX Motor Cooling Fan - 156mm
Most Large LX Motors - Black
Special Order ItemLead time to be confirmed
QF: FAN-5847
£4.20
RRP: £4.99
COMPARE LX Fan Cover
LX Fan Cover
For LP Series & JA200/TDA150/TDA200
7 In StockSame day dispatch if ordered by 14:00
QF: FAN-5851
£7.99
COMPARE LX LP200 & WP200 Impeller
LX LP200 & WP200 Impeller
2Hp
42 In StockSame day dispatch if ordered by 14:00
QF: IMP-5809
£8.70
COMPARE LX Motor Plate Front
LX Motor Plate Front
Fits LP Motors
DiscontinuedPlease see alternatives
QF: CAS-5848
£17.49
RRP: £24.63
COMPARE LX Motor Bearing Set - 6203Z & 6204Z
LX Motor Bearing Set - 6203Z & 6204Z
For LP / WP Motors
Special Order ItemLead time to be confirmed
QF: BEA-5849
£21.99
COMPARE LX O-Ring - 70mm
LX O-Ring - 70mm
For LP/WP Pump Unions
377 In StockSame day dispatch if ordered by 14:00
QF: ORG-5860
£6.99
COMPARE LX O-Ring - 150mm
LX O-Ring - 150mm
LP / WP - Wet End Face Plate
7 In StockSame day dispatch if ordered by 14:00
QF: ORG-5807
£11.49
COMPARE LX Drain Plug + O-Ring
LX Drain Plug + O-Ring
LP & WP Wet Ends
Special Order ItemLead time to be confirmed
QF: PLU-5806
£5.49
RRP: £6.46
COMPARE LX Cross Head Screw - M5 x 15mm
LX Cross Head Screw - M5 x 15mm
LP / WP / EA Face Plates
86 In StockSame day dispatch if ordered by 14:00
QF: SCR-5808
£0.99
