LX Circ / Whirlpool Pump - TDA50 - ½HP

1 ½" Suction

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year (There is usually a one off fee to pay unless we are running a promotion) This can be arranged at the point of purchase or within a limited time afterwards.
Promotions - From time to time we run a promotiont to include a FREE 1year Extended Warranty on select products. If an item is eligible for a FREE extended warranty then this will be displayed on the product listing & will be noted in your basket.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 483 OR email us at info@justspaparts.co.uk

LID: 20194
LX TDA50
Circ / Whirlpool Pump
½HP
1 ½" x 1 ½" (63mm x 63mm)
£106.70 Inc VAT
( £148.19)
PMP-5752
Out of Stock Lead time to be confirmed
Request a lead time
Fast UK Delivery

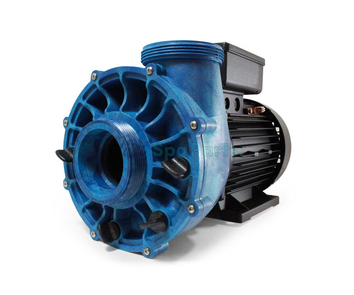

LX Circ / Whirlpool Pump - TDA50 - ½HP
£106.70
RRP £148.19

The TDA Series has been one of the longest serving pumps built by LX. Designed and built to ensure it remains watertight during long periods of continuous operation.

It is most commonly used as a circulation pump on hot tubs, swim spas and swimming pool systems. But can also be fitted to many whirlpool baths as well.

The TDA50 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.

The highly reinforced plastic base is vibration-resistance and corrosive-resistance while the Motor itself is low noise and creates little vibration, so will quietly do its job allowing you to enjoy the hydro massage bathtub or spa.

Please Note:

LX pumps are not fitted with air switches.

Air switches or pneumatic control boxes can be fitted by a qualified electrician to these pumps.

Air Switches

Model Information
Dimensions L x W x H 350x180x235mm
Nozzels (Jets) 2-4
HEAD - H max 8m
FLOW - Q max 180 L/min
Type / Speed Circulation
Model TDA Series
Horsepower 0.05-0.5 Hp
MPN TDA50
Motor Information
Voltage / Frequency 220-240V / 50Hz
Amp Draw 2.0 A
Power - P1 0.37 kW
RPM 2900
Capacitor Size(s) 7 µF
Frame Size 48F
Cord / Plug Type 3 Core AMP
Wet End Information
Union Connection Ref 1.5 " (Inch)
Connection Diameter 63mm
Thread Type Male - Buttress
Impeller Part No. PA2
Impeller Diameter 60mm
Impeller Vane Gap 6mm
Shaft Seal Type Type A
Spare Parts Available Yes - See Spare Parts List
More Info

Pump Specifications

Dimensions

  • 350 x 180 x 235

Summary

  • Power: ½HP / 0.37kW
  • Nozzles: 2-4
  • Max. Head: 8 m
  • Max. Flow: 180 L/min
Spares
COMPARE LX Pump Shaft Seal - Type A
LX Pump Shaft Seal - Type A
For JA, LP & WP Series
23 In StockSame day dispatch if ordered by 14:00
QF: PMS-7397
£27.31
RRP: £34.14
COMPARE LX Motor Cooling Fan - 103mm
LX Motor Cooling Fan - 103mm
Most Small LX Motors - White
5 In StockSame day dispatch if ordered by 14:00
QF: FAN-5831
£35.99
COMPARE LX Motor Cooling Fan - 121mm
LX Motor Cooling Fan - 121mm
Most Medium LX Motors - White
Out of Stock - Available to Pre-Order10 on order - estimated 09/10/2024
QF: FAN-5799
£2.49
COMPARE LX Slinger Washer - Small
LX Slinger Washer - Small
For JA35 / JA50 / TDA50 / WTC50 Motor Shafts
Special Order ItemLead time to be confirmed
QF: SLG-5839
£0.99
RRP: £1.10
COMPARE LX JA50 & TDA50 Impeller
LX JA50 & TDA50 Impeller
0.50Hp
6 In StockSame day dispatch if ordered by 14:00
QF: IMP-5824
£18.44
COMPARE LX Motor Plate Front
LX Motor Plate Front
Fits JA35, JA50, TDA50
2 In StockSame day dispatch if ordered by 14:00
QF: CAS-5828
£8.49
RRP: £11.69
COMPARE LX O-Ring - 160mm
LX O-Ring - 160mm
JA / TDA - Wet End Face Plate
Special Order ItemLead time to be confirmed
QF: ORG-5787
£1.49
RRP: £1.66
COMPARE LX Fan Cover
LX Fan Cover
For JA35 & JA50
1 In StockSame day dispatch if ordered by 14:00
QF: FAN-5838
£7.99
COMPARE LX Cross Head Screw - M4 x 18mm
LX Cross Head Screw - M4 x 18mm
For Use with TDA Face Plates
Special Order ItemLead time to be confirmed
QF: SCR-5784
£0.99
RRP: £1.10
COMPARE LX Motor Bolt - M5 x 190mm
LX Motor Bolt - M5 x 190mm
For Use with JA200 / TDA150 / TDA200
Special Order ItemLead time to be confirmed
QF: BLT-5798
£1.99
